Twitter/X Real-Time Search System

Concepts Covered

• Inverted indexes
• Search indexing pipelines
• Freshness and indexing lag
• Query fan-out
• Candidate retrieval
• Ranking signals
• Index sharding and replicas
• Hot queries and cache pressure
• Visibility filtering and safety filtering
• Backpressure
• Replay, reindexing, and repair

1. Introduction

A Twitter/X-style real-time search system lets users search a fast-moving stream of posts. The product expectation is very different from searching a static document archive. Users search for breaking news, live events, trending terms, accounts, hashtags, and conversations that may have appeared only seconds ago.

The naive mental model is: "store posts in a database, then search the text column." That is useful only for a tiny product. At large scale, the system needs to search a huge and constantly changing corpus while keeping results fresh, relevant, safe, and fast.

The core pressure is this:

new posts arrive continuously
users expect them to become searchable quickly
queries must scan almost nothing
results must be ranked and filtered
the system must survive hot topics and traffic spikes

This module uses "Twitter/X Real-Time Search" as a familiar product shape, not as a claim about Twitter or X's private implementation.

2. Product Requirements

Functional Requirements

• Users can search recent and historical posts by text.
• Users can search hashtags, mentions, phrases, and account names.
• Results can be sorted by relevance, recency, or a product-specific blend.
• Newly created posts should become searchable quickly.
• Deleted, private, blocked, muted, or policy-restricted posts should not appear to unauthorized viewers.
• The system can filter by language, author, media type, time range, or engagement.
• The system can handle trending queries and breaking-news traffic spikes.
• Operators can rebuild or repair indexes from source data.

Non-Functional Requirements

• Search latency should be low enough for interactive use.
• Index freshness should be bounded and measured.
• Query serving should remain available during partial shard failures.
• Index updates should be retryable and idempotent.
• Hot queries should not overload every search shard.
• Ranking should be useful without making queries too slow.
• The source-of-truth post store should remain independent from the search index.

3. Core Engineering Challenges

Challenge	Why it matters
Freshness	Social search loses value if new posts appear minutes too late during live events.
Candidate retrieval	The system must find matching posts without scanning the whole corpus.
Ranking	Raw text matches are noisy; useful results need relevance, freshness, quality, and safety signals.
Query fan-out	The index is sharded, so one query may need partial results from many machines.
Tail latency	A slow shard can delay the entire user query.
Hot queries	A trending term can concentrate enormous query volume on the same terms and caches.
Visibility filtering	Search must respect privacy, blocks, mutes, deletions, and policy state.
Reindexing	Indexes are derived data and must be rebuildable when schemas, tokenizers, or ranking features change.

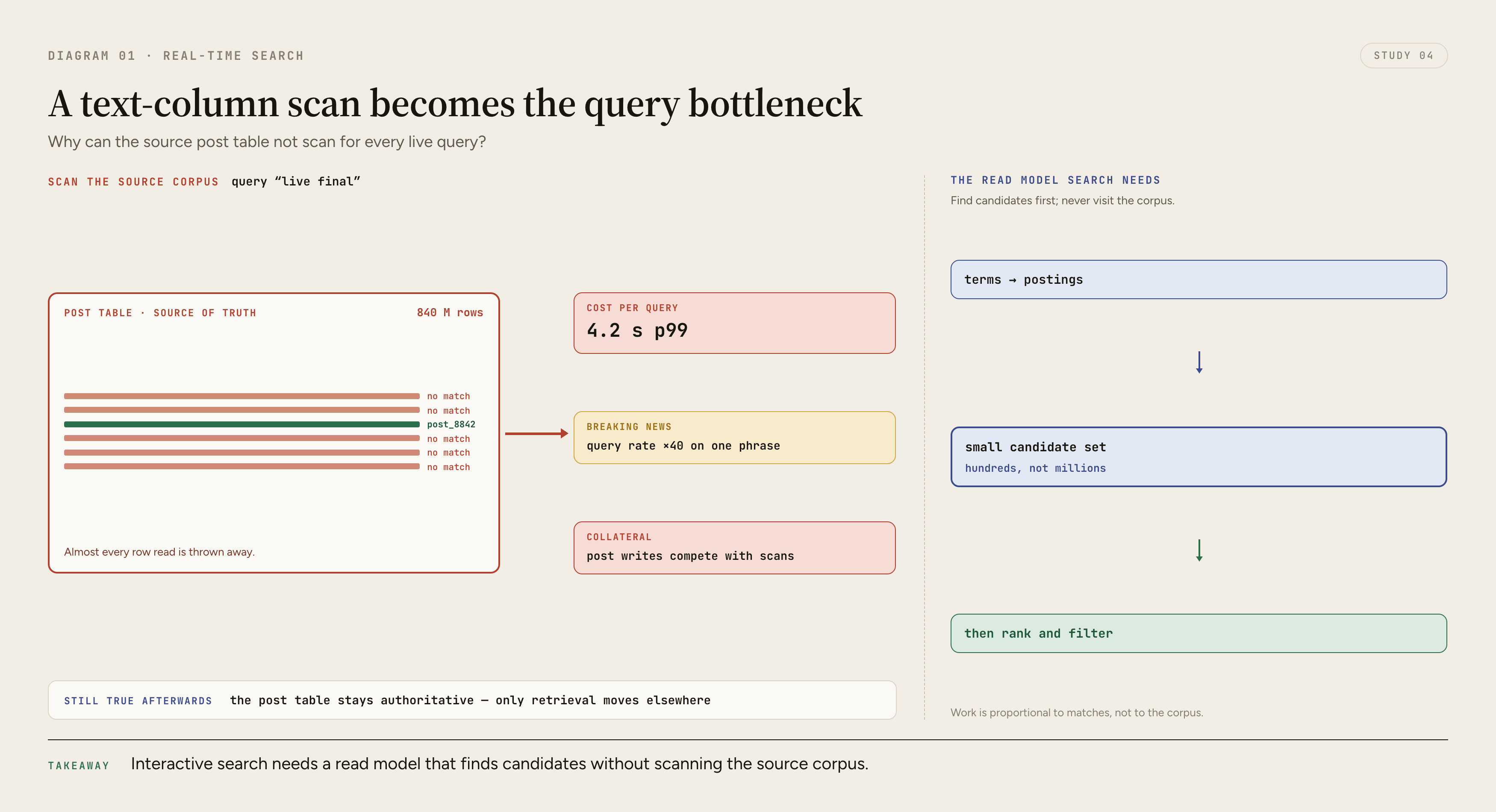

The naive implementation fails because it puts a database scan on the query path. A second naive implementation fails because it updates the search index synchronously during post creation. A production system separates the source write path, indexing path, and query serving path.

4. High-Level Architecture

flowchart LR
  Client[Client] --> PostAPI[Post API]
  PostAPI --> PostDB[(Post Store)]
  PostAPI --> EventStream[Post Event Stream]

  EventStream --> IndexWorkers[Indexing Workers]
  IndexWorkers --> FreshSegments[(Fresh Index Segments)]
  IndexWorkers --> DurableIndex[(Durable Search Index)]
  FreshSegments --> SearchReplicas[Search Serving Replicas]
  DurableIndex --> SearchReplicas

  SearchClient[Search Client] --> QueryAPI[Search API]
  QueryAPI --> QueryPlanner[Query Planner]
  QueryPlanner --> SearchReplicas
  SearchReplicas --> Merger[Result Merger]
  Merger --> Ranker[Ranking Service]
  Ranker --> Filters[Visibility And Safety Filters]
  Filters --> SearchClient

  IndexWorkers --> DLQ[Dead Letter Queue]
  DurableIndex --> Backfill[Reindex And Backfill Jobs]

There are three major flows:

• post creation makes the post durable
• indexing makes the post searchable
• query serving retrieves, merges, ranks, filters, and returns results

The search index is not the source of truth. It is a derived read model optimized for retrieval.

5. Core Components

Post API

The Post API handles the user write path. It validates the request, writes the post to the source-of-truth store, and emits an event that indexing should happen.

The important design decision: the Post API should not require every search shard to update before returning success. If search indexing is down, users should still be able to create posts, and the indexing pipeline should catch up later.

Post Store

The post store keeps durable post records:

• post id
• author id
• body text
• language
• created time
• visibility state
• deletion state
• reply or conversation metadata
• media references

This store is the recovery source. If the search index loses data or changes schema, the system should be able to rebuild the index from this durable source.

Event Stream

The event stream carries post-created, post-updated, deleted, visibility-changed, and engagement-updated events.

Search indexing workers consume this stream. The stream creates a retryable boundary between product writes and search indexing.

Indexing Workers

Indexing workers transform posts into search index data.

They may:

• tokenize text
• normalize terms
• extract hashtags and mentions
• detect language
• attach timestamp and author metadata
• attach visibility fields
• write into inverted indexes
• publish fresh index segments to serving nodes

Workers should be idempotent. If a worker processes the same post event twice, the index should converge to one correct document version.

Search Serving Replicas

Search serving replicas hold searchable index data and answer shard-local queries. A replica may own a subset of documents, terms, time ranges, or some combination.

Replicas should be horizontally scalable. Query traffic and index size eventually exceed one machine.

Query Planner And Coordinator

The query planner parses the query and decides which shards to ask. The coordinator fans out the request, gathers partial results, handles timeouts, and merges candidates.

This is where query fan-out becomes operationally real. More shards improve capacity, but every additional shard can add latency and failure exposure.

Ranking Service

The ranking service orders candidates using ranking signals. A candidate that matches the text is not automatically the best result.

Ranking may consider:

• text relevance
• recency
• engagement
• author quality
• viewer language and region
• relationship to the viewer
• safety and spam signals

Visibility And Safety Filters

Search results must be filtered before the user sees them.

The system must account for:

• deleted posts
• private accounts
• blocked or muted authors
• viewer-specific restrictions
• regional restrictions
• spam and abuse states

Some filters can be encoded in the index. Others require request-time checks because they depend on the viewer.

6. Data Modeling

Source Post

post_id
author_id
body
language
created_at
visibility_state
deleted_at
conversation_id
media_refs
version

The version field matters because index updates can arrive out of order. If a post is edited or deleted, an older index event should not overwrite a newer state.

Index Document

doc_id
post_id
author_id
tokens
hashtags
mentions
language
created_at
visibility_state
quality_features
engagement_features
version

The index document is shaped for search, not for source-of-truth correctness. It can duplicate data from the post store because read models are allowed to denormalize.

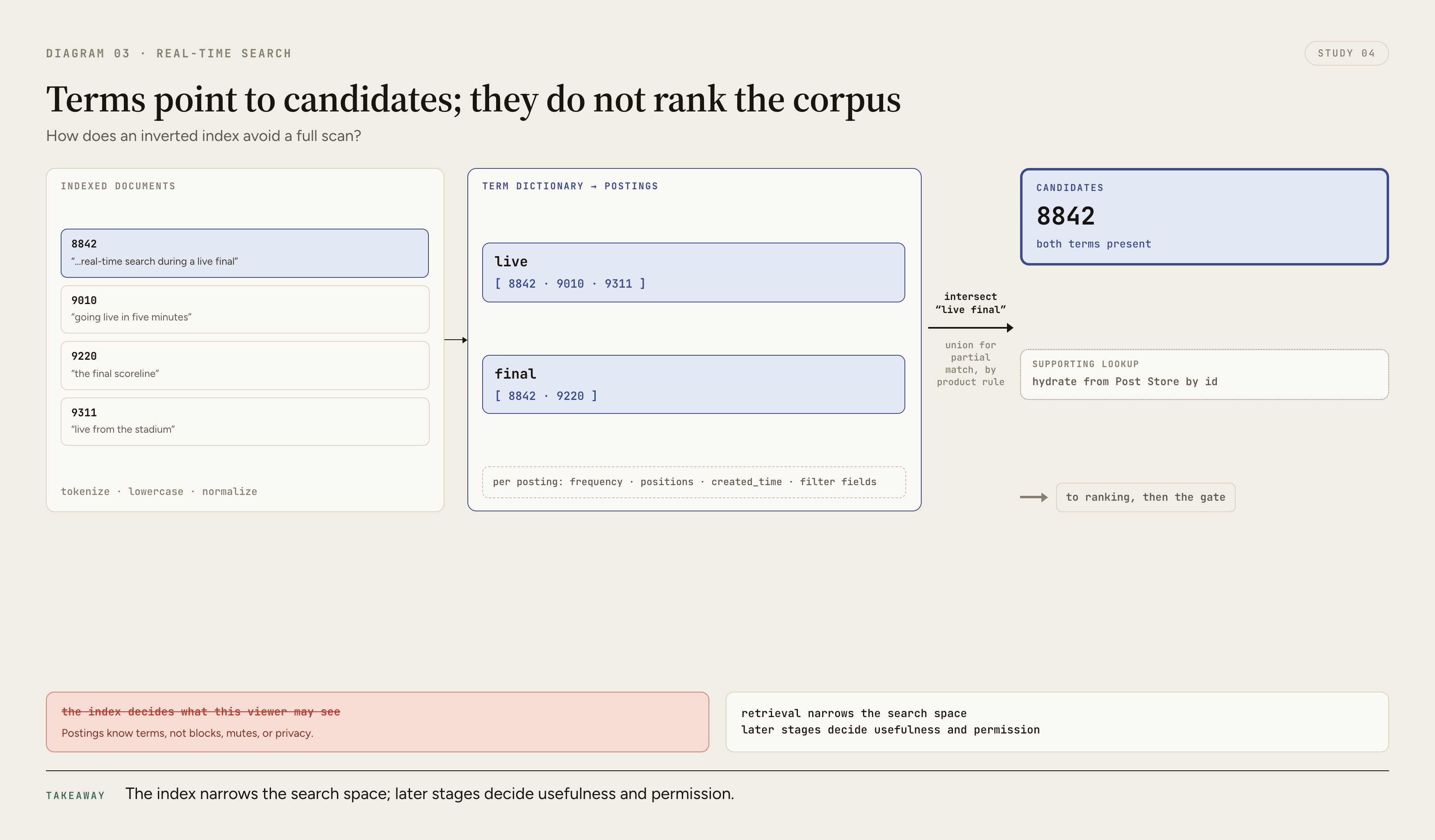

Term Dictionary And Postings

term -> postings list

postings entry:
  doc_id
  term_frequency
  positions
  created_at
  lightweight_filters

This lets the engine retrieve candidate documents by term before applying richer ranking and filtering.

Shard Metadata

shard_id
replica_id
time_range
document_range
index_version
last_event_offset
health_state

Shard metadata helps coordinators route queries and helps operators detect lagging or unhealthy serving replicas.

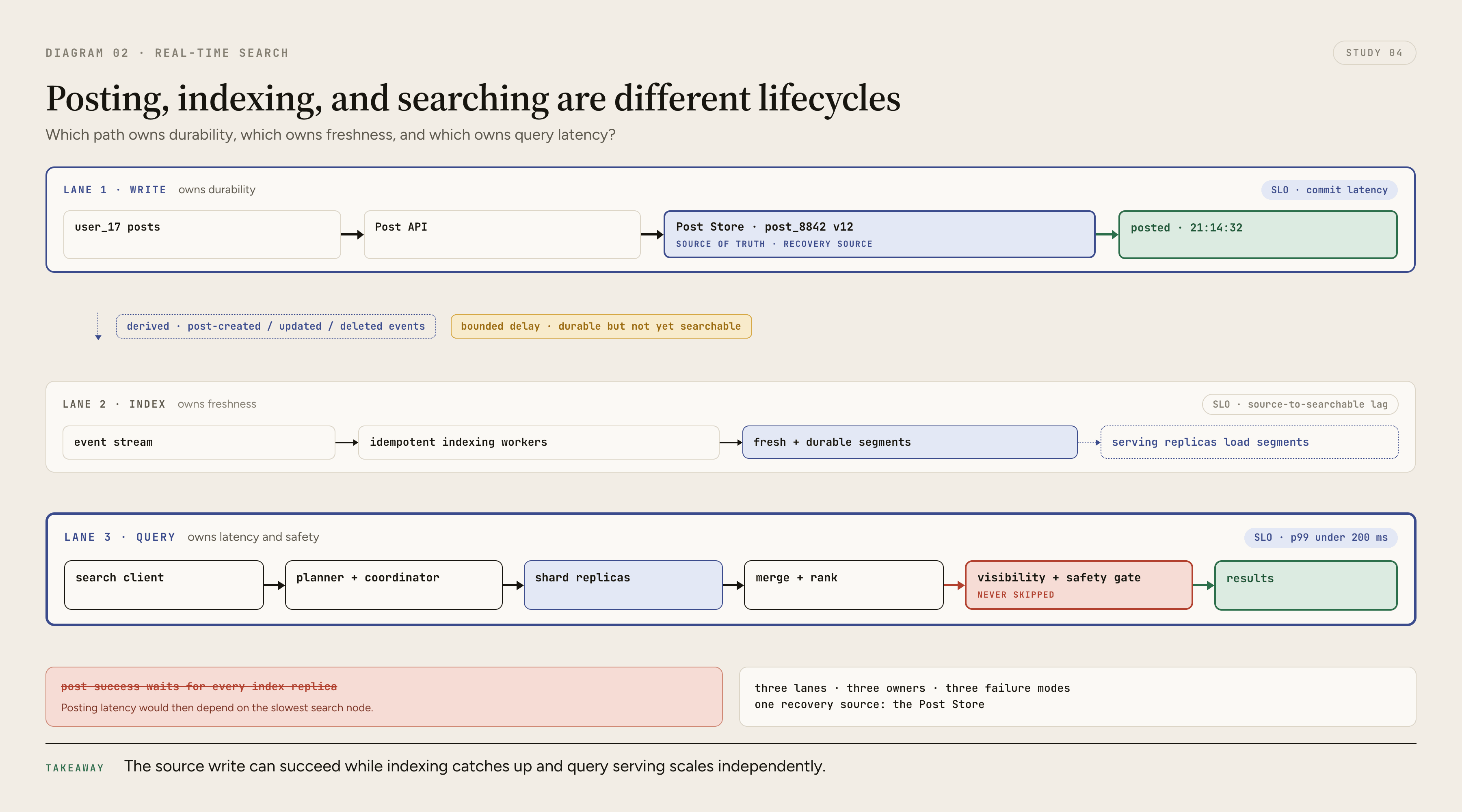

7. Request Lifecycle

Write Lifecycle

1. User creates a post.
2. Post API validates and writes the post to the post store.
3. Post API emits a post-created event.
4. Indexing workers consume the event.
5. Workers tokenize, enrich, and write index data.
6. Search replicas load fresh index segments.
7. The post becomes searchable.

If indexing is delayed, the post still exists. The user write path and the search freshness path are separate.

Search Lifecycle

1. User submits a query.
2. Search API normalizes and parses the query.
3. Query planner selects shards and replicas.
4. Coordinator fans out shard-local searches.
5. Shards return candidate results.
6. Coordinator merges candidates.
7. Ranker orders candidates.
8. Visibility and safety filters remove disallowed results.
9. API returns the final result page.

The user sees one search request. Internally, it is a distributed scatter-gather operation with strict latency limits.

8. Scaling Problems

Index Size

The full corpus cannot fit on one machine forever. Sharding spreads index data across machines.

Shard strategies can include:

• document id ranges
• time ranges
• tenant or region
• hybrid partitioning

Time-based partitioning is attractive for real-time search because recent posts are queried heavily, but historical search still matters.

Hot Queries

Breaking news can create massive query spikes for the same terms.

Mitigations:

• cache popular query results briefly
• cache term-level postings or candidate sets
• rate limit abusive clients
• protect shards with timeouts and backpressure
• precompute or warm trending query paths

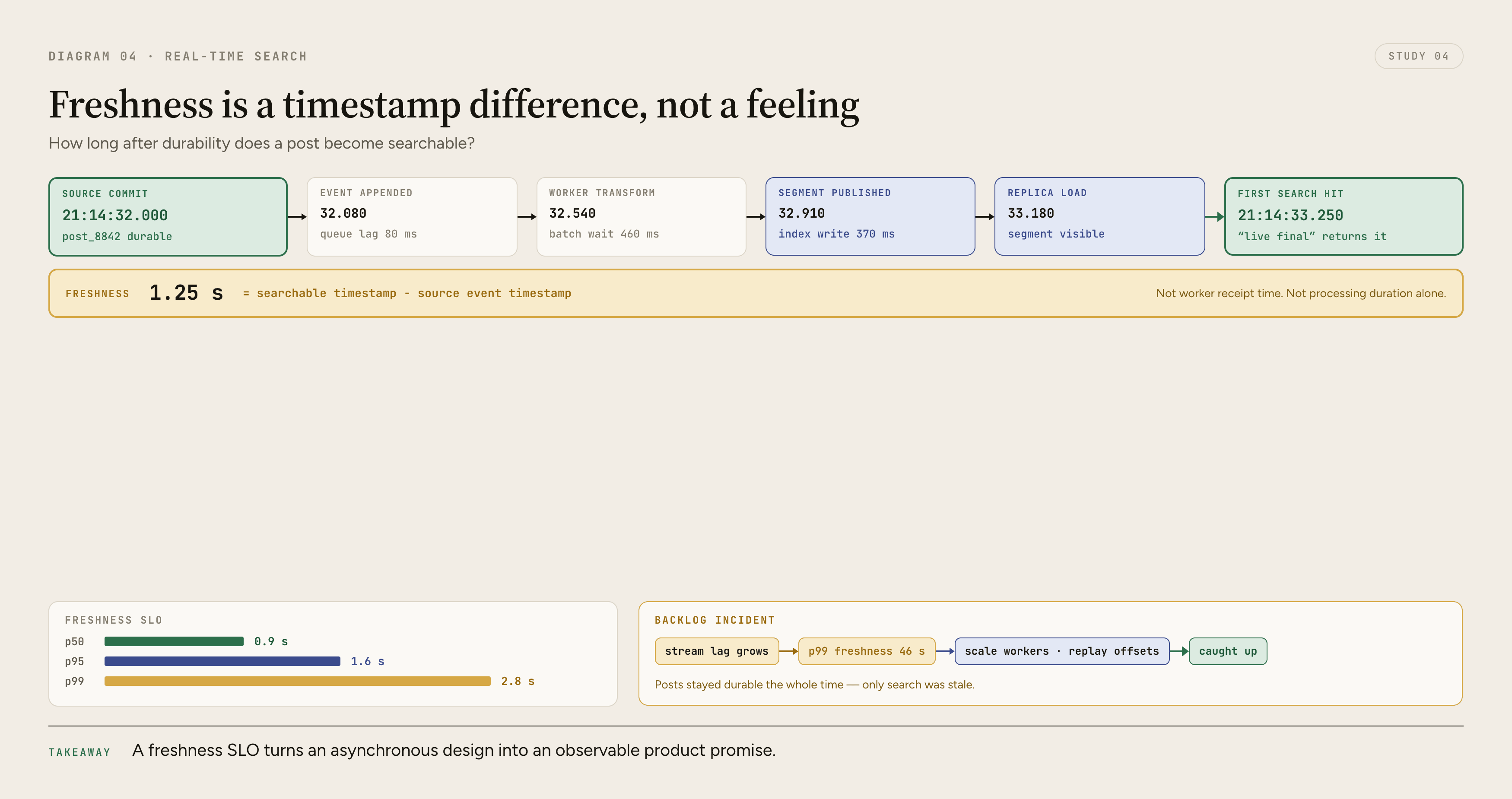

Freshness Pressure

If indexing workers fall behind, search becomes stale.

Freshness is not a vague feeling. It should be measured:

source event timestamp -> searchable timestamp

Operators should know p50, p95, and p99 indexing lag.

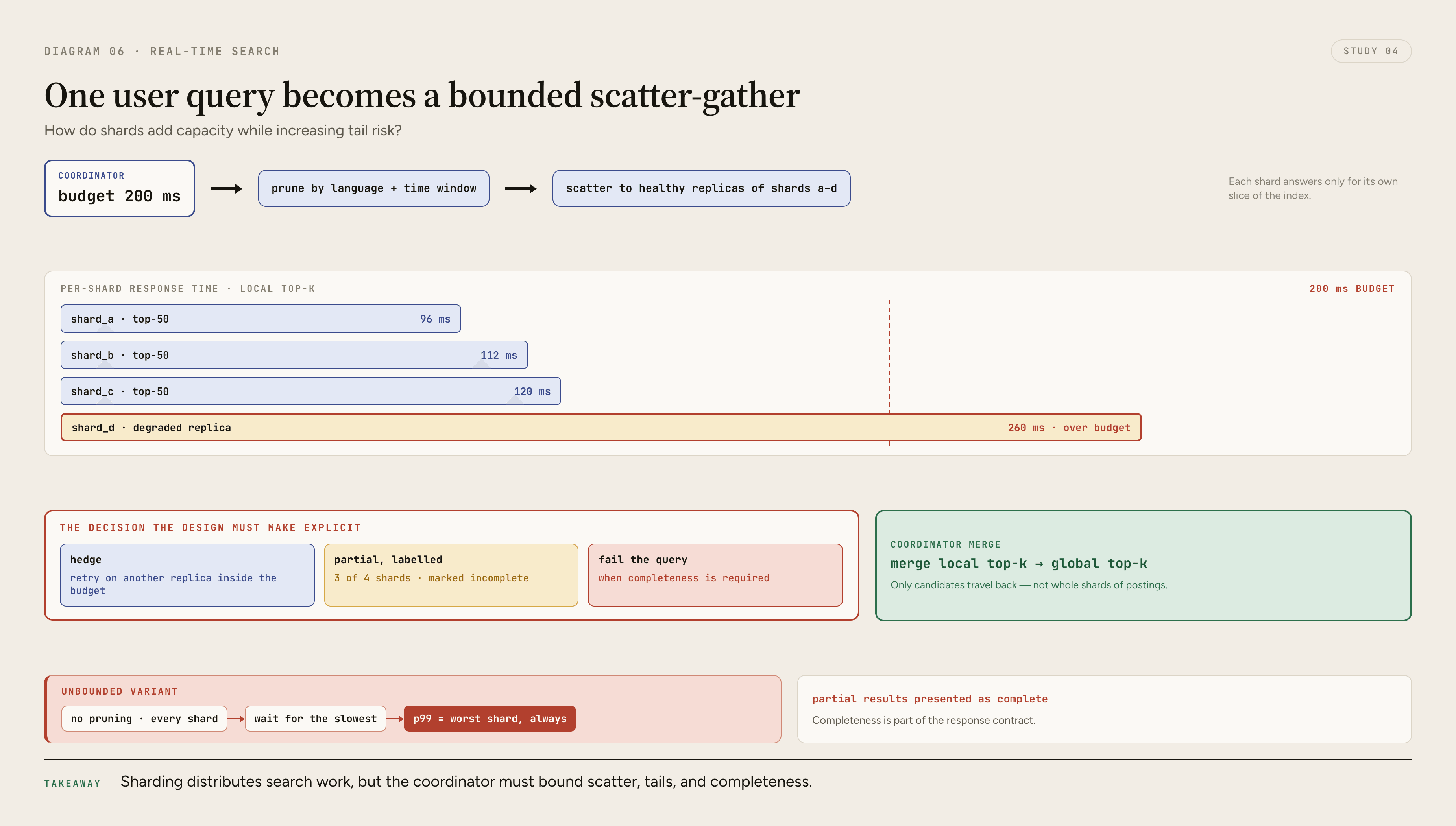

Query Fan-Out Cost

If every query touches every shard, capacity can collapse.

The query planner can reduce work by:

• searching recent shards first for recency-sorted queries
• pruning shards by language or time range
• using replicas for load balancing
• applying per-shard top-k limits
• timing out slow shards

9. Distributed Systems Concepts

Search Index As A Derived Projection

The search index is a derived projection. It exists to serve reads efficiently, but the source post store remains the truth.

This matters because derived data can drift. The system needs replay, reconciliation, and backfill paths.

Eventual Consistency

A post may be durable before it is searchable. A deleted post may briefly remain in an index unless deletion events and filters are handled carefully.

This is eventual consistency. The product must decide which inconsistencies are tolerable and which require stronger request-time checks.

Backpressure

If indexing workers cannot keep up, the event stream lag grows. If query traffic spikes, search replicas can saturate.

Backpressure prevents overload from becoming system-wide collapse. The system may shed expensive queries, degrade ranking, return partial results, or slow non-critical indexing work.

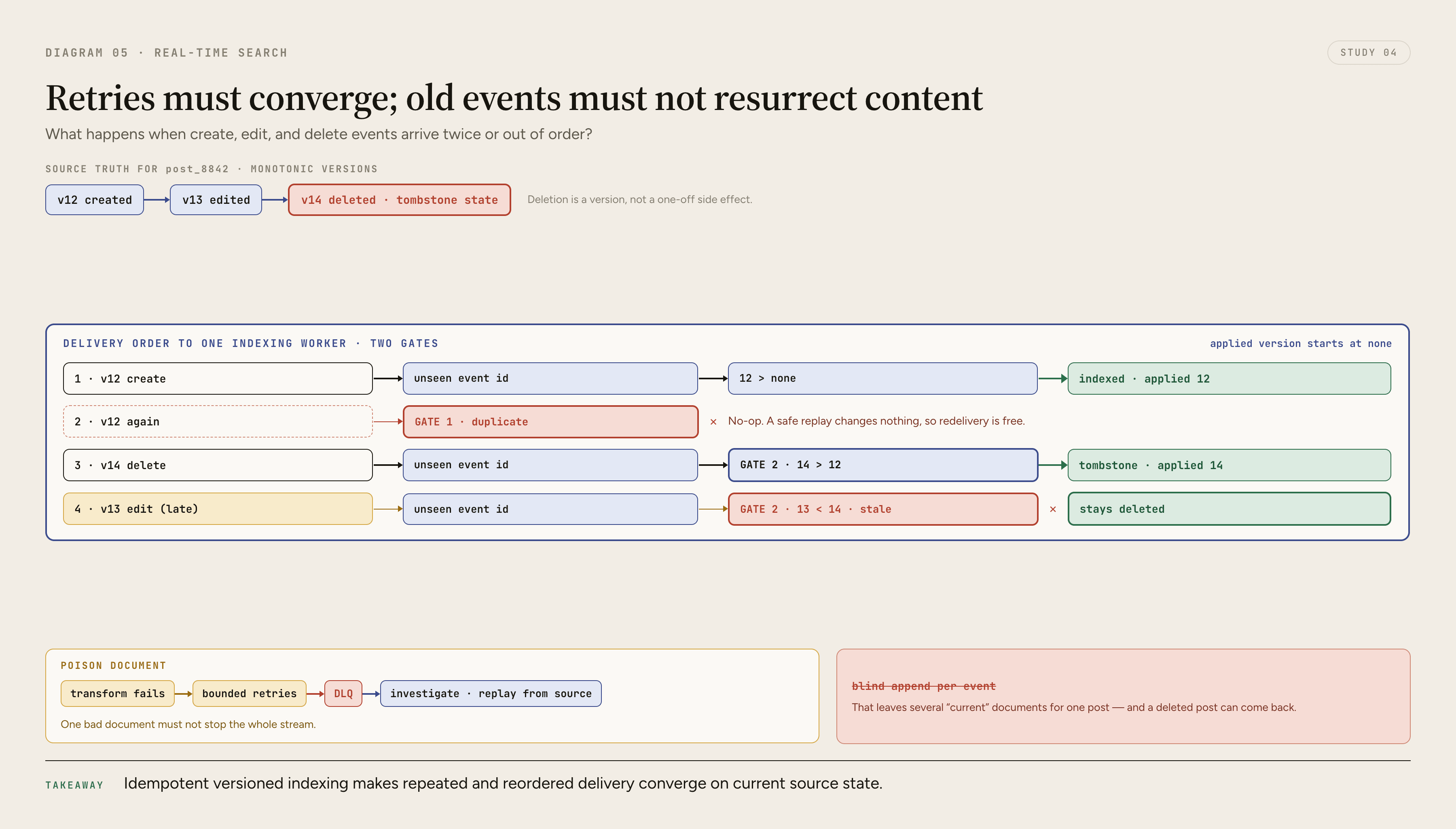

Idempotency

Indexing events may be retried. Workers must avoid duplicate documents and stale overwrites. A common approach is to store document versions and make each index write conditional on the version moving forward.

10. Reliability & Failure Handling

Indexing Worker Failure

If an indexing worker crashes, another worker should resume from the event stream. Failed documents can retry. Poison documents can move to a dead-letter queue for investigation.

Search Shard Failure

If one search shard is unavailable, the coordinator has options:

• ask another replica
• return partial results
• degrade to recent-only results
• fail the query if completeness is required

For social search, partial fast results may be acceptable for some queries. The system should record when responses are partial.

Stale Visibility State

A dangerous failure is returning content that should no longer be visible. Deletions, account privacy, blocks, and policy restrictions may need request-time filtering even if the index also stores visibility metadata.

Freshness is important, but safety and privacy correctness are more important.

Reindexing

Reindexing is required when:

• tokenization changes
• ranking features change
• index schema changes
• a bug corrupts index data
• a new language or filter is added

Reindexing should run from the source post store into a new index version, then gradually shift query traffic.

11. Real-World Company Approaches

Large social and search systems generally separate source writes from search serving. They use asynchronous indexing pipelines, sharded inverted indexes, serving replicas, query coordinators, ranking layers, and operational repair paths.

Public system design discussions often simplify this into "use Elasticsearch." That can be a reasonable starting point for many products, but the deeper lesson is not the specific tool. The deeper lesson is the shape of the system:

durable source data
  -> retryable indexing pipeline
  -> sharded search index
  -> query fan-out
  -> ranking and filtering
  -> observable freshness and repair

At very large scale, teams often customize indexing, ranking, caching, and serving paths around product-specific traffic, freshness, and safety needs.

12. Tradeoffs & Alternatives

Synchronous Indexing vs Asynchronous Indexing

Synchronous indexing gives stronger immediate visibility but makes post creation depend on search health.

Asynchronous indexing keeps writes reliable but introduces freshness lag.

For social search, asynchronous indexing with tight freshness targets is usually the better production tradeoff.

Complete Results vs Fast Results

Waiting for every shard improves completeness but increases tail latency.

Returning partial results improves responsiveness but may miss some posts.

The right choice depends on the product. A real-time social search can often degrade gracefully. Compliance search usually cannot.

Rich Ranking vs Low Latency

Richer ranking can improve result quality, but every feature lookup adds latency and failure risk.

The system may use staged ranking:

cheap retrieval rank -> top candidates -> expensive rerank

This keeps expensive features away from the full candidate set.

General Search Engine vs Product Search

A general search engine optimizes broad web retrieval. A social search system optimizes freshness, author context, live events, safety, and social signals. The architecture overlaps, but the product pressures are different.

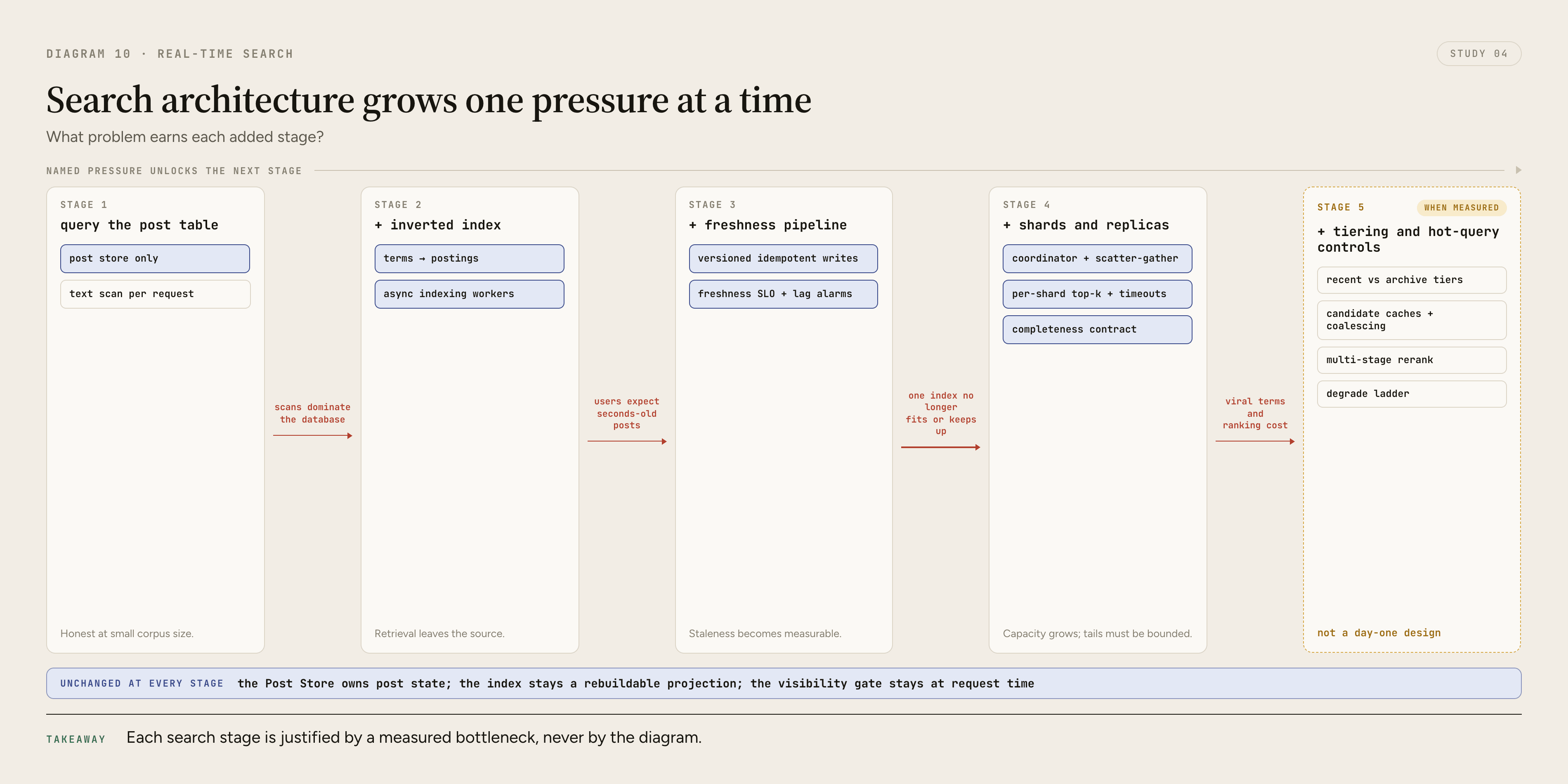

13. Evolution Path

Stage 1: Database Search

The product starts with a relational database and simple text search. This is acceptable for small corpora and internal tools.

Stage 2: External Search Index

The team introduces a search engine and an indexing job. Queries move off the primary database.

Stage 3: Event-Driven Indexing

Post writes emit events. Indexing workers process changes continuously. Freshness becomes measurable.

Stage 4: Sharded Real-Time Search

The index is split across shards and replicas. Query coordinators fan out and merge results.

Stage 5: Ranking, Safety, And Operations

The system adds richer ranking, visibility filtering, hot-query defenses, replay, reindexing, and operational dashboards.

The architecture evolves because the product moves from "can we find text?" to "can we search live global conversation safely and quickly?"

14. Key Engineering Lessons

• Search systems start with retrieval, but product quality comes from ranking and filtering.
• An inverted index is the core structure that prevents full corpus scans.
• The source post store and search index should be separated.
• Search freshness must be measured as an operational metric.
• Query fan-out turns search into a distributed latency problem.
• Hot queries need caching, limits, and backpressure.
• Visibility and safety correctness can matter more than raw freshness.
• Reindexing is not an emergency hack; it is a normal operating capability.

15. Related Topics

• Inverted Index
• Search Indexing Pipeline
• Query Fan-Out
• Ranking Signals
• Event Streams
• Sharding
• Caching
• Backpressure
• Eventual Consistency
• Derived Projections
• Idempotent Consumer
• Dead-Letter Queue
• Retry With Backoff And Jitter
• Reconciliation Job
