System Design

Uber-Style Ride Matching System

Design a ride matching system that handles live driver locations, geospatial lookup, dispatch decisions, assignment leases, stale state, retries, and marketplace reliability.

advanced12 min readUpdated unknownModelingCapacityDataReliabilityOperationsTradeoffs

Geospatial IndexingLocation StreamsDispatch MatchingLease-Based AssignmentPresenceEvent StreamsIdempotencyBackpressureEventual ConsistencyCaching

Study path

Read these in order

Start with the mechanics, then move into the patterns that explain why the system is shaped this way.

Concepts Covered

Location streams
Geospatial indexing
Dispatch matching
Driver availability and presence
ETA-based candidate ranking
Lease-based assignment
Stale location handling
Ride request idempotency
Event-driven ride lifecycle
Marketplace backpressure and surge pressure
Assignment failure and retry handling

1. Introduction

An Uber-style ride matching system connects a rider who needs a trip with a nearby driver who can accept it.

The visible product behavior looks simple: a rider taps a button, nearby cars appear on a map, a driver is assigned, and the trip begins. The backend problem is harder because almost every fact involved is changing:

drivers move
riders move
GPS updates arrive late
drivers can go offline
multiple riders can compete for the same driver
drivers can reject or ignore offers
traffic changes ETA
demand spikes by neighborhood, weather, events, and time of day

At small scale, it is tempting to query all available drivers, sort by distance, and assign the closest one. At production scale, that fails because the system is not just a map lookup. It is a realtime marketplace with scarce supply, stale state, race conditions, and user-facing latency pressure.

This module uses "Uber-Style Ride Matching" as a familiar product shape, not as a claim about Uber's private implementation.

2. Product Requirements

Functional Requirements

Riders can request a ride from a pickup location to a destination.
Drivers can come online, go offline, accept trips, reject trips, or time out.
The system can maintain recent driver locations.
The system can find nearby eligible drivers for a pickup point.
The system can estimate pickup ETA for candidate drivers.
The system can offer a ride to one or more drivers according to product rules.
A driver can be safely assigned to only one active ride at a time.
Riders and drivers can observe ride state changes.
Operators can inspect and repair stuck ride states.

Non-Functional Requirements

Matching latency should be low because rider patience is short.
Driver assignment should avoid double-booking.
Location freshness should be measured and bounded.
The system should tolerate mobile network instability.
Hot areas should not overload one database row, shard, or geospatial cell.
Failed offers should recover through retry or reassignment.
Ride lifecycle events should be durable for billing, support, analytics, and fraud detection.

3. Core Engineering Challenges

Challenge	Why it matters
Location freshness	A nearby driver from 90 seconds ago may now be blocks away or unavailable.
Geospatial lookup	The matcher cannot scan every online driver for every rider request.
Assignment races	Multiple matching workers can see the same driver as available.
Driver uncertainty	A driver may reject, ignore, lose network, or accept too late.
ETA accuracy	Distance alone is not enough; roads, traffic, turns, and pickup constraints matter.
Marketplace imbalance	Rush hour, airports, storms, and events create city-level hot spots.
State transitions	Ride state moves through requested, offered, accepted, arrived, started, completed, canceled.
Operational repair	Stuck leases, stale locations, missed events, and partial failures must be detectable.

The naive implementation fails because it treats matching as one database query. A production design separates driver location ingestion, availability state, geospatial candidate lookup, dispatch decisioning, assignment reservation, ride lifecycle events, and repair workflows.

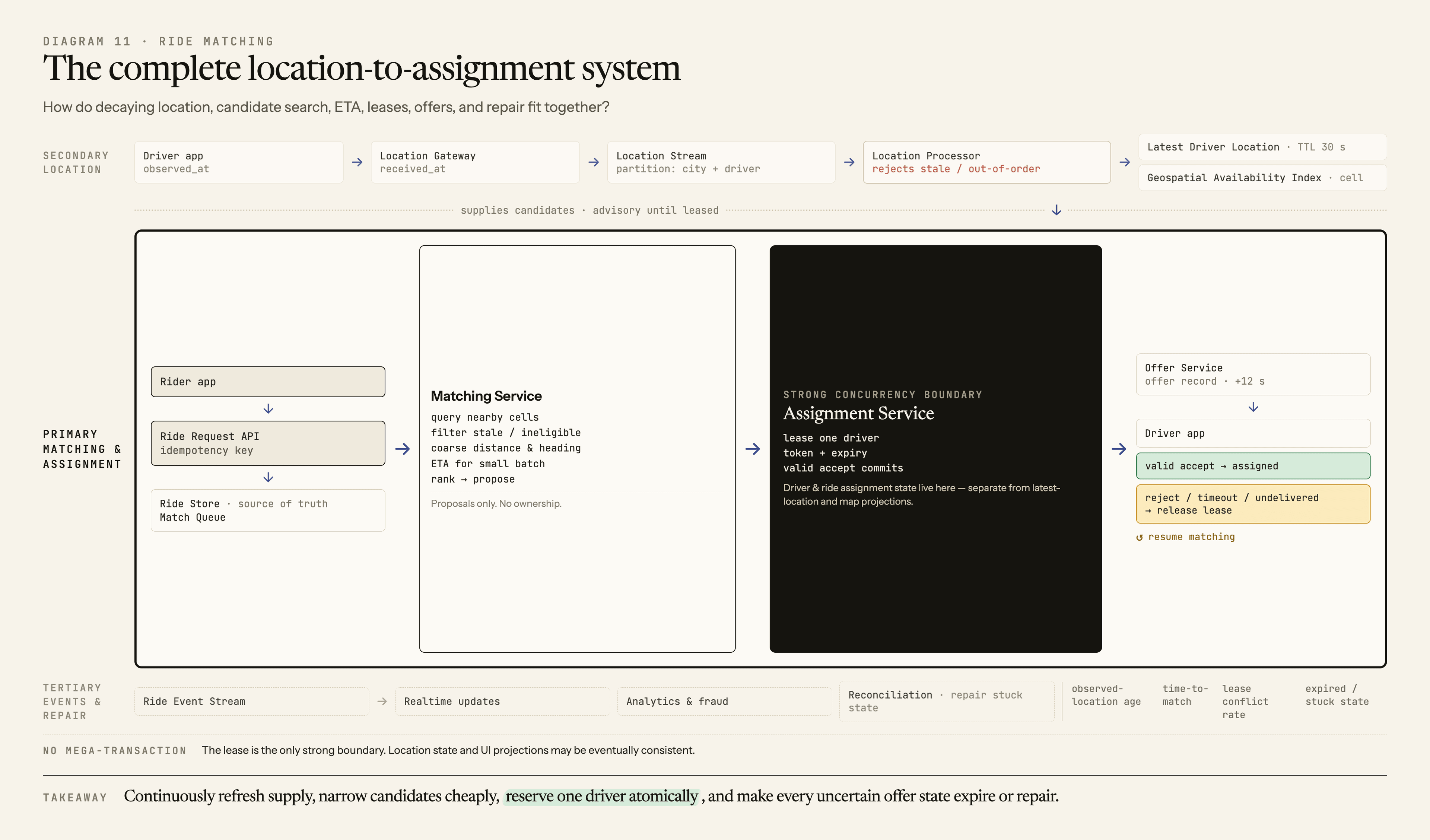

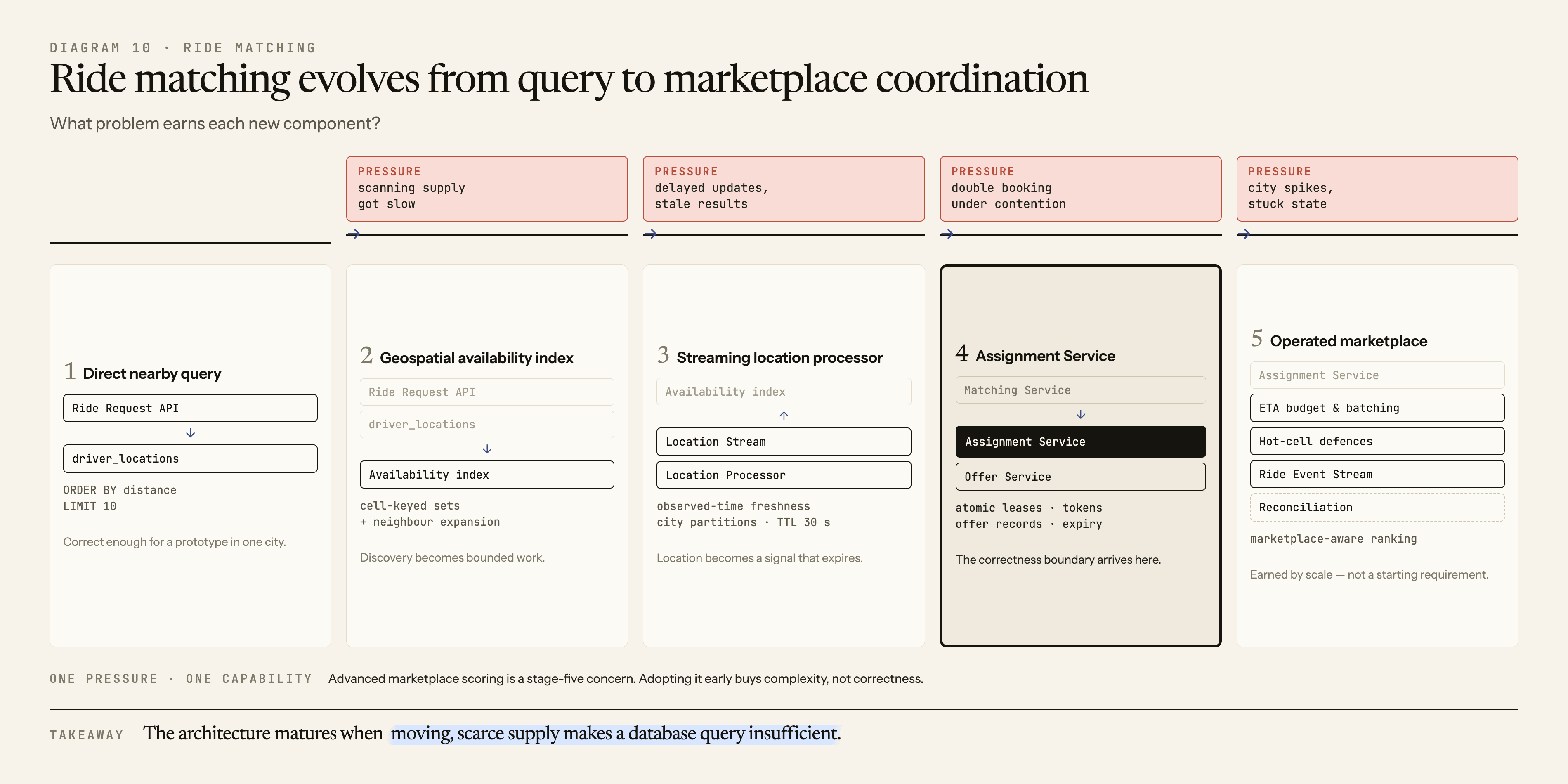

4. High-Level Architecture

flowchart LR
  DriverApp[Driver App] --> LocationGateway[Location Gateway]
  LocationGateway --> LocationStream[Location Stream]
  LocationStream --> LocationProcessor[Location Processor]
  LocationProcessor --> LatestLocation[(Latest Driver Location)]
  LocationProcessor --> GeoIndex[(Geospatial Availability Index)]

  RiderApp[Rider App] --> RideAPI[Ride Request API]
  RideAPI --> RideDB[(Ride Store)]
  RideAPI --> MatchQueue[Match Request Queue]

  MatchQueue --> Matcher[Matching Service]
  Matcher --> GeoIndex
  Matcher --> EtaService[ETA Service]
  Matcher --> Assignment[Assignment Service]
  Assignment --> DriverState[(Driver State)]
  Assignment --> OfferService[Offer Service]
  OfferService --> DriverApp

  DriverApp --> Assignment
  Assignment --> RideEvents[Ride Event Stream]
  RideEvents --> Notifications[Realtime Updates]
  RideEvents --> Analytics[Analytics And Fraud]
  RideEvents --> Repair[Repair And Reconciliation]

There are three important paths:

location path: keeps driver position and availability fresh
matching path: finds and ranks candidates for a rider request
assignment path: reserves a driver, handles acceptance, and emits ride state changes

The system should not rely on one synchronous mega-transaction across every component. It needs clear state transitions and retryable boundaries.

5. Core Components

Driver App

The driver app sends location updates, availability changes, and responses to trip offers.

Driver updates are not perfectly reliable. The app may lose connectivity, go into the background, send delayed coordinates, or retry old requests. The backend must treat mobile signals as useful but imperfect.

Location Gateway

The location gateway receives high-volume mobile telemetry. It authenticates drivers, validates updates, applies basic rate limits, and publishes location updates to a stream.

This gateway should not run heavy matching logic. Its job is ingestion and protection.

Location Processor

The location processor consumes location streams, normalizes updates, drops stale or invalid data, and updates two serving views:

latest driver location
geospatial availability index

When a driver moves from one cell to another, the processor updates the geospatial index so future rider requests search the right area.

Ride Request API

The Ride Request API creates the rider's request. It validates pickup, destination, rider eligibility, payment readiness, and product constraints.

Ride creation should be idempotent. If the rider app retries because the network is flaky, the system should not create multiple active ride requests for one tap.

Matching Service

The matching service owns dispatch matching. It reads nearby available drivers, filters stale or ineligible candidates, estimates pickup ETAs, ranks candidates, and asks the assignment service to reserve one.

The matcher should expect candidates to change while it is thinking. A driver that looked available at the start of matching may be leased by another worker by the time assignment begins.

ETA Service

The ETA service estimates pickup time. It may use road network distance, traffic, driver heading, historical data, live conditions, and pickup constraints.

ETA does not need to be perfect, but it needs to be operationally understood. Bad ETA can create poor matches even if the driver is physically close.

Assignment Service

The assignment service prevents double booking. It uses a lease-based assignment or similar conditional reservation so only one ride workflow can temporarily own a driver during the offer window.

This service is the concurrency boundary.

Offer Service

The offer service sends trip offers to drivers and records accept, reject, and timeout outcomes.

Driver response is not guaranteed. The system needs explicit timeouts so leased drivers do not remain stuck forever.

6. Data Modeling

Driver State

driver_id
status: offline | available | leased | assigned | on_trip
current_ride_id
lease_token
lease_expires_at
last_location_id
last_seen_at
version
updated_at

status is the core assignment state. lease_token protects against stale workers confirming old reservations.

Latest Driver Location

driver_id
lat
lng
heading
speed
accuracy
observed_at
received_at
geo_cell

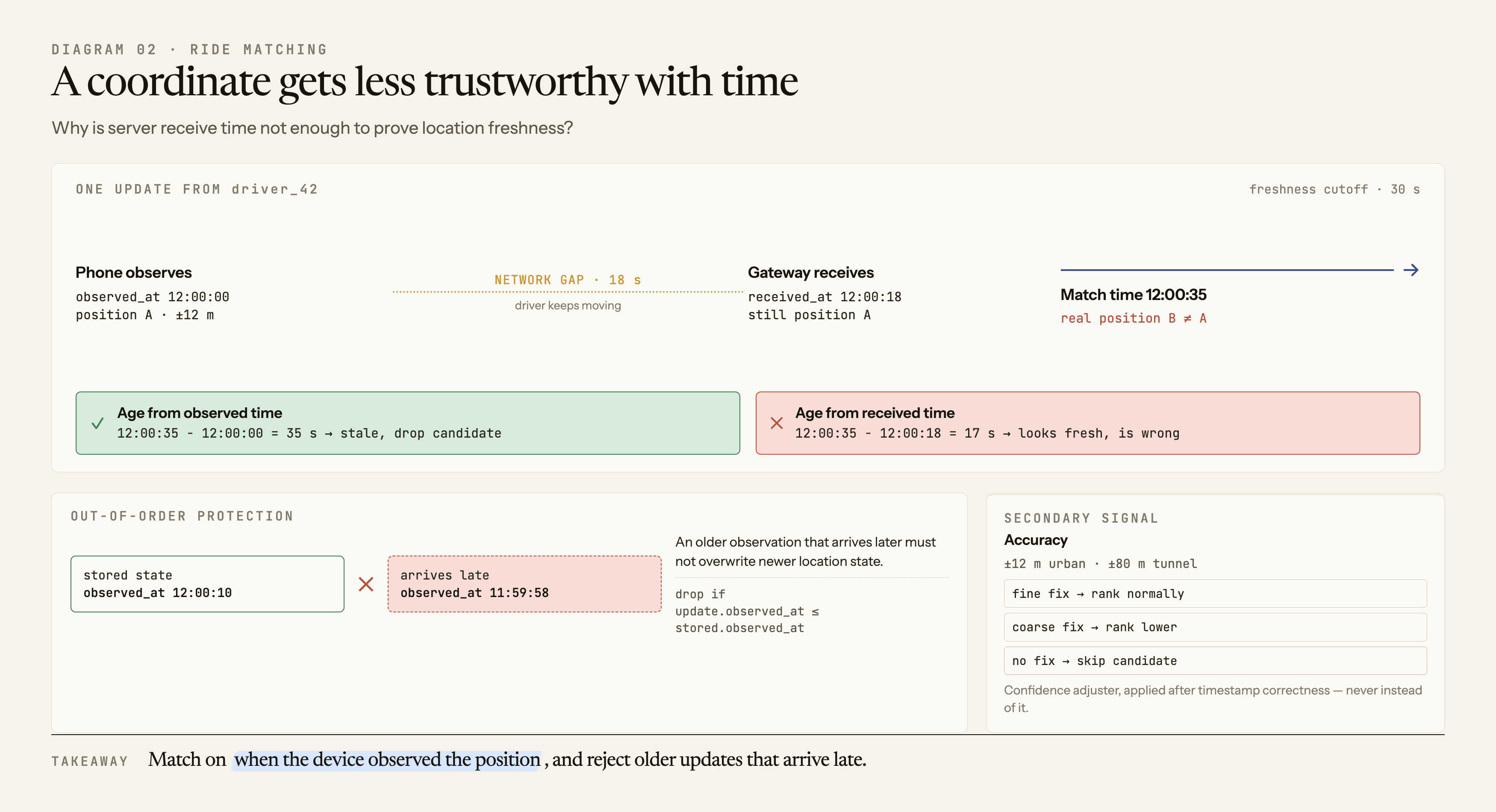

observed_at and received_at are both useful. A client may observe a GPS coordinate and send it late. Matching should care about the age of the observation, not only the server receive time.

Ride Request

ride_id
rider_id
pickup_lat
pickup_lng
destination_lat
destination_lng
status: requested | matching | offered | accepted | canceled | completed
idempotency_key
created_at
updated_at

The idempotency key protects the system from duplicate ride creation when the rider app retries.

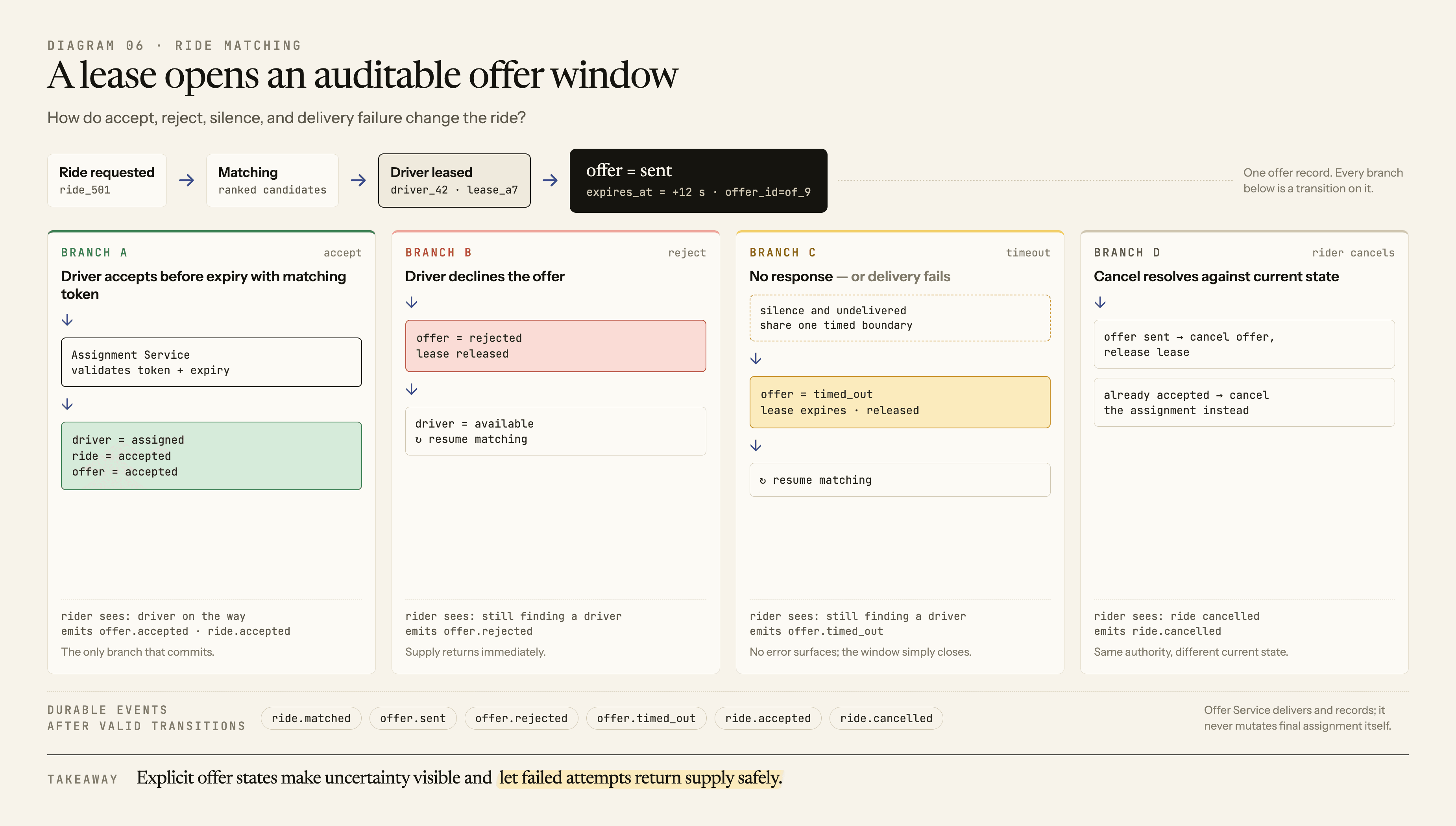

Ride Offer

offer_id
ride_id
driver_id
lease_token
status: sent | accepted | rejected | timed_out | canceled
expires_at
created_at
responded_at

Offers make the matching workflow auditable. They also help support and fraud teams understand what happened.

7. Request Lifecycle

Driver Location Lifecycle

1. Driver app sends location update.
2. Location gateway validates and publishes update.
3. Location processor consumes the update.
4. Latest-location store is updated if the update is newer.
5. Geospatial index moves the driver to the correct cell.
6. Matcher can now discover the driver for nearby pickup requests.

The location path is continuous. Matching depends on it, but matching should also defend against stale or missing updates.

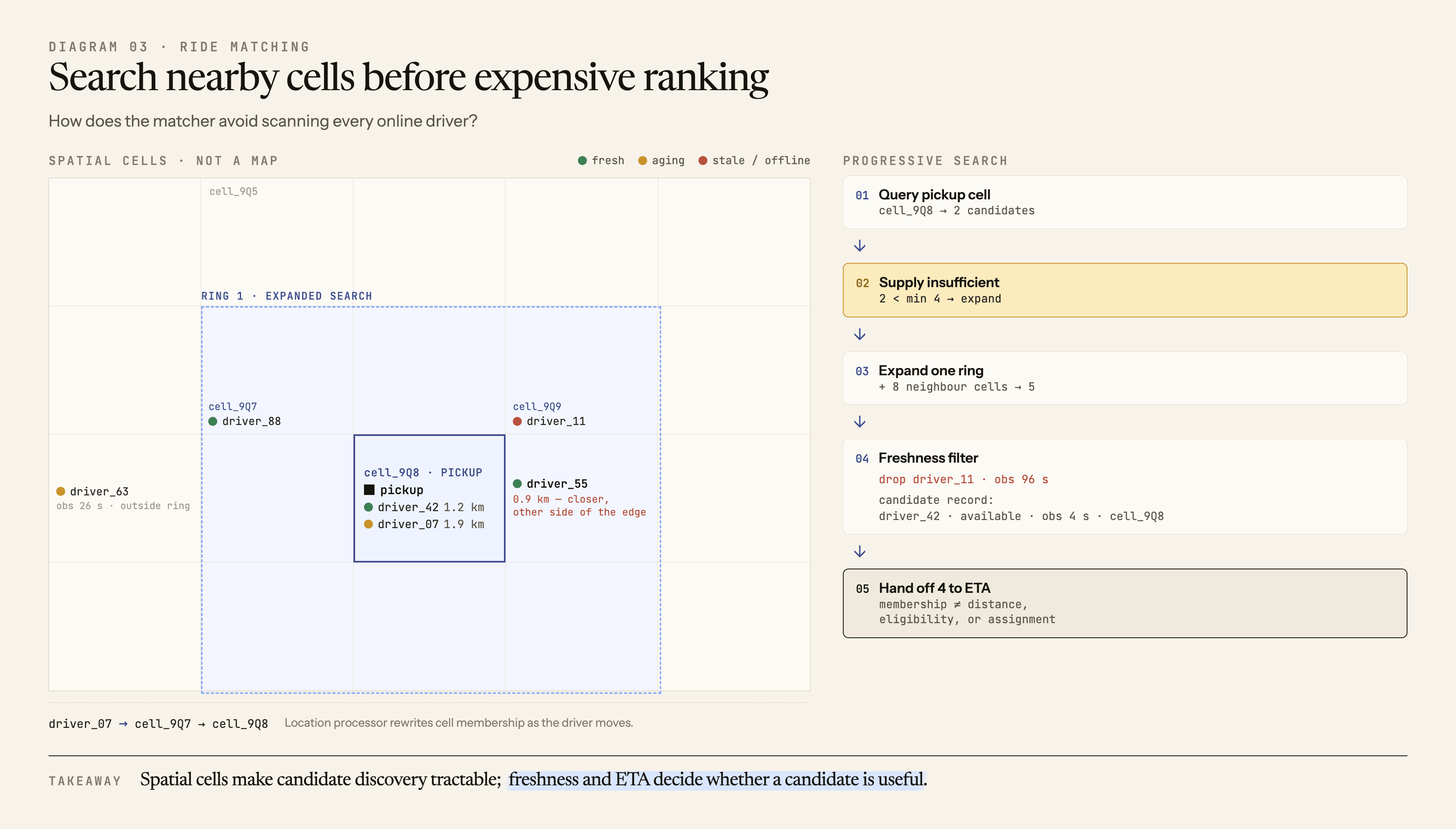

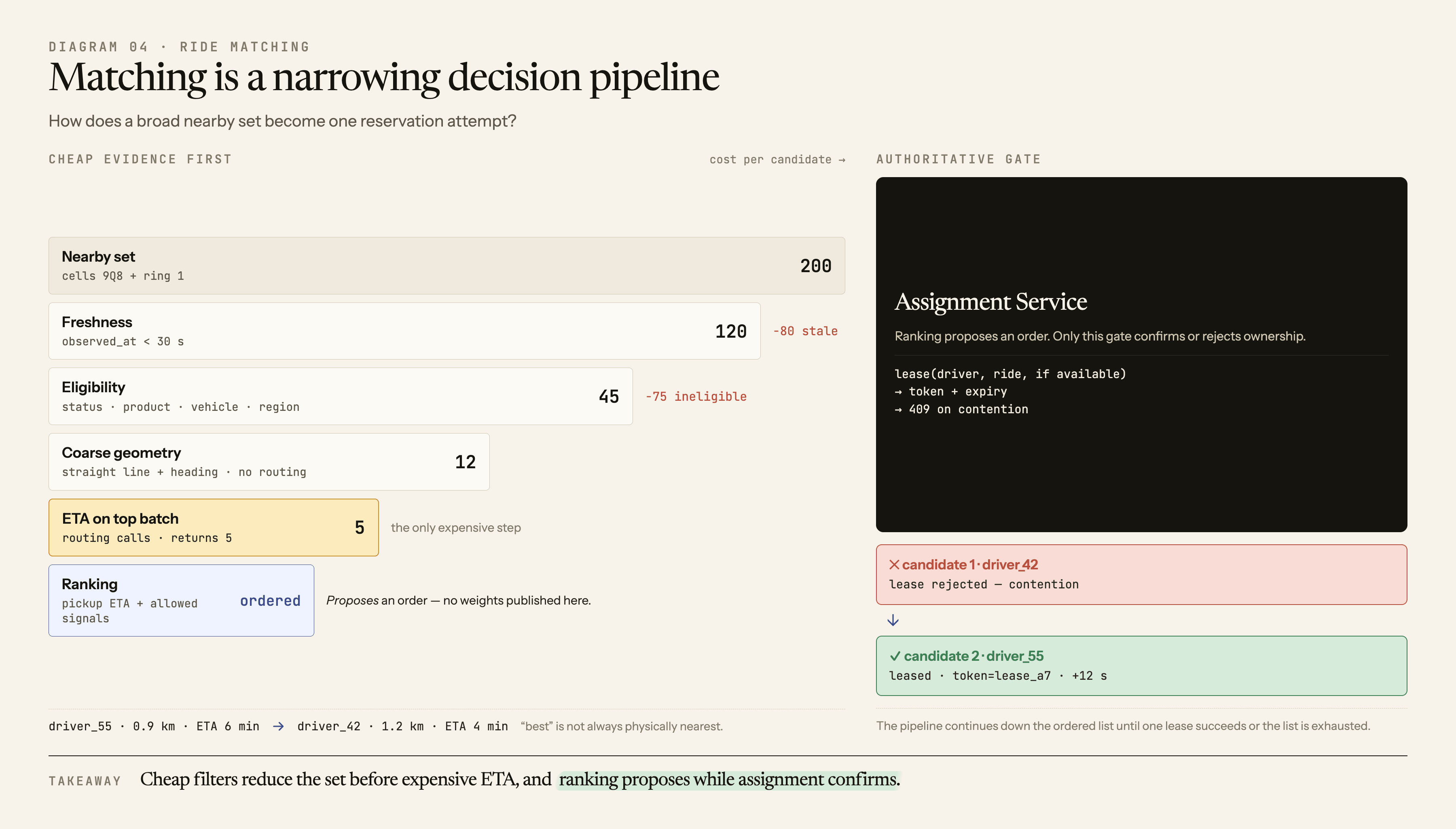

Ride Matching Lifecycle

1. Rider requests a ride with an idempotency key.
2. Ride API creates or returns the existing ride request.
3. Match request is queued.
4. Matcher searches nearby geospatial cells.
5. Matcher filters stale, unavailable, or ineligible drivers.
6. ETA service estimates pickup times.
7. Matcher ranks candidates.
8. Assignment service leases the selected driver.
9. Offer service sends trip offer.
10. Driver accepts, rejects, or times out.
11. Accepted offer becomes committed assignment.
12. Ride event stream publishes state changes.

Each stage has a failure mode. The design should make those failures visible and recoverable.

8. Scaling Problems

High-Volume Location Writes

Drivers send frequent updates. A large city can create enormous write volume.

Mitigations:

adaptive update frequency
discard older updates for the same driver
separate raw location history from latest-location serving state
partition streams by city or driver id
protect ingestion with backpressure

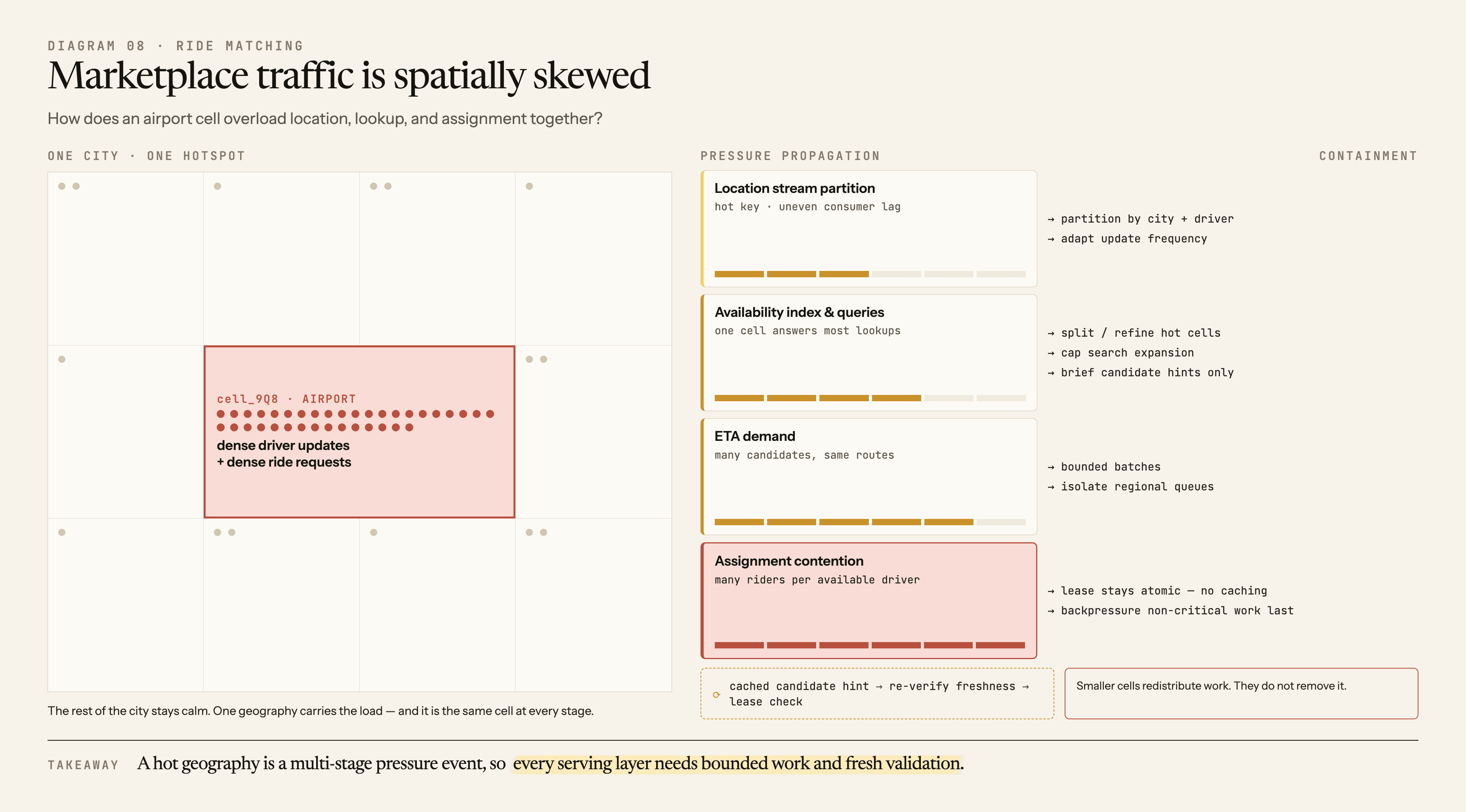

Hot Geographic Cells

Airports, stadiums, downtown zones, and train stations can become hot cells. A single spatial cell may receive huge writes and reads.

Mitigations:

dynamic cell resolution
regional sharding
hot-cell splitting
caching candidate sets briefly
expanding search radius carefully

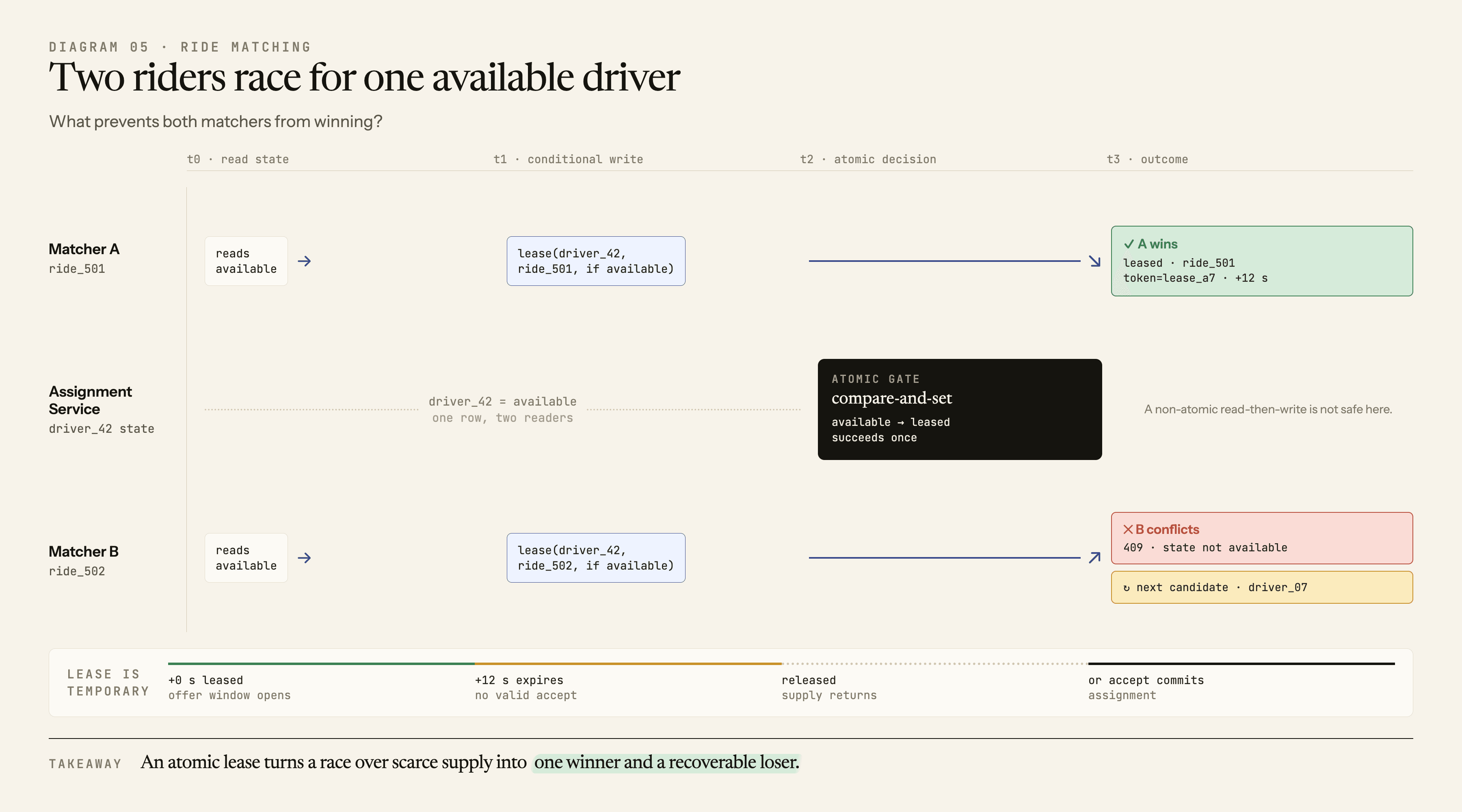

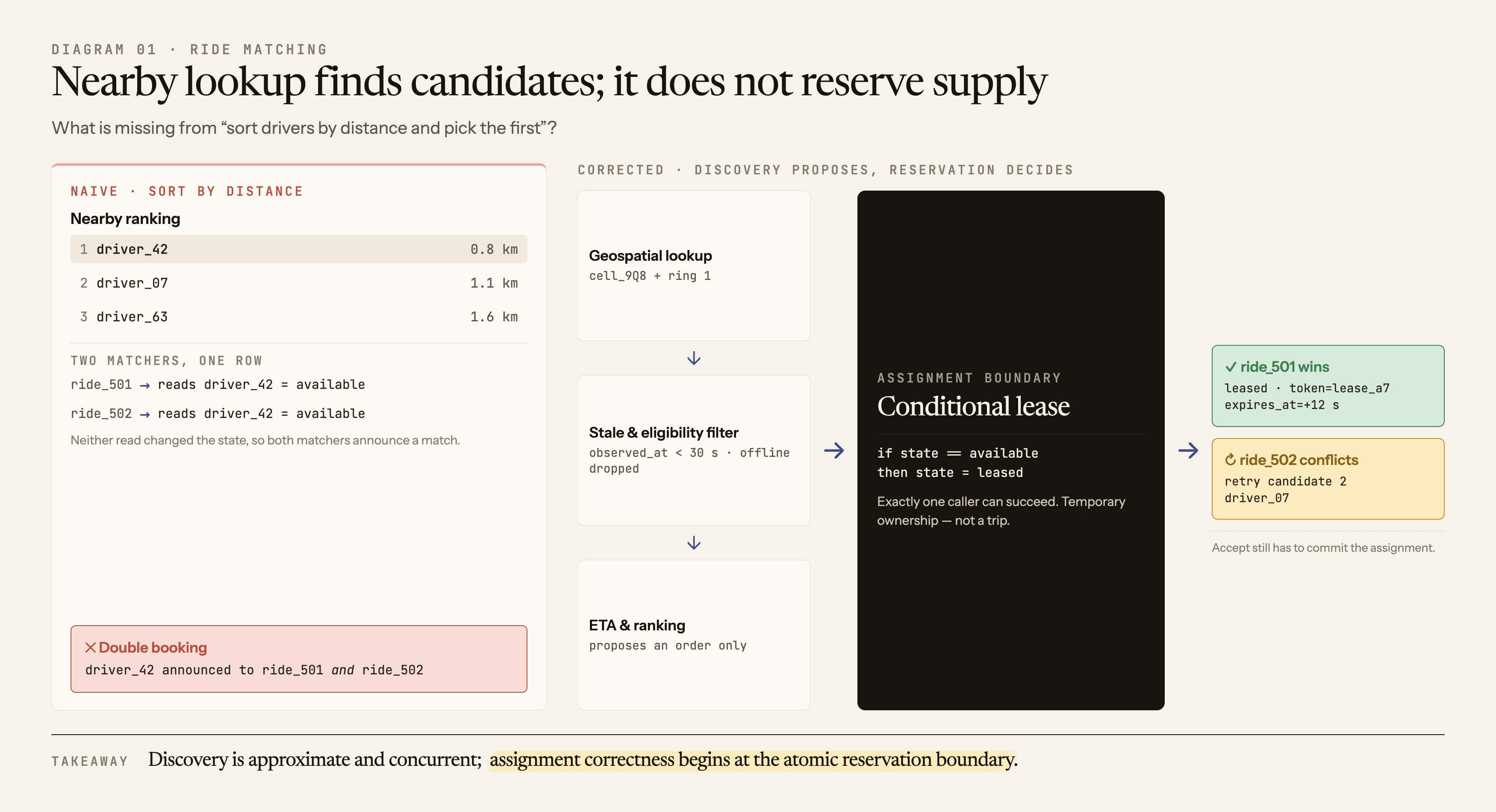

Assignment Contention

When supply is scarce, many riders may compete for the same few drivers. The assignment service becomes a contention point.

Lease-based assignment makes contention explicit. Only one worker wins the lease. Others must try alternate candidates or delay.

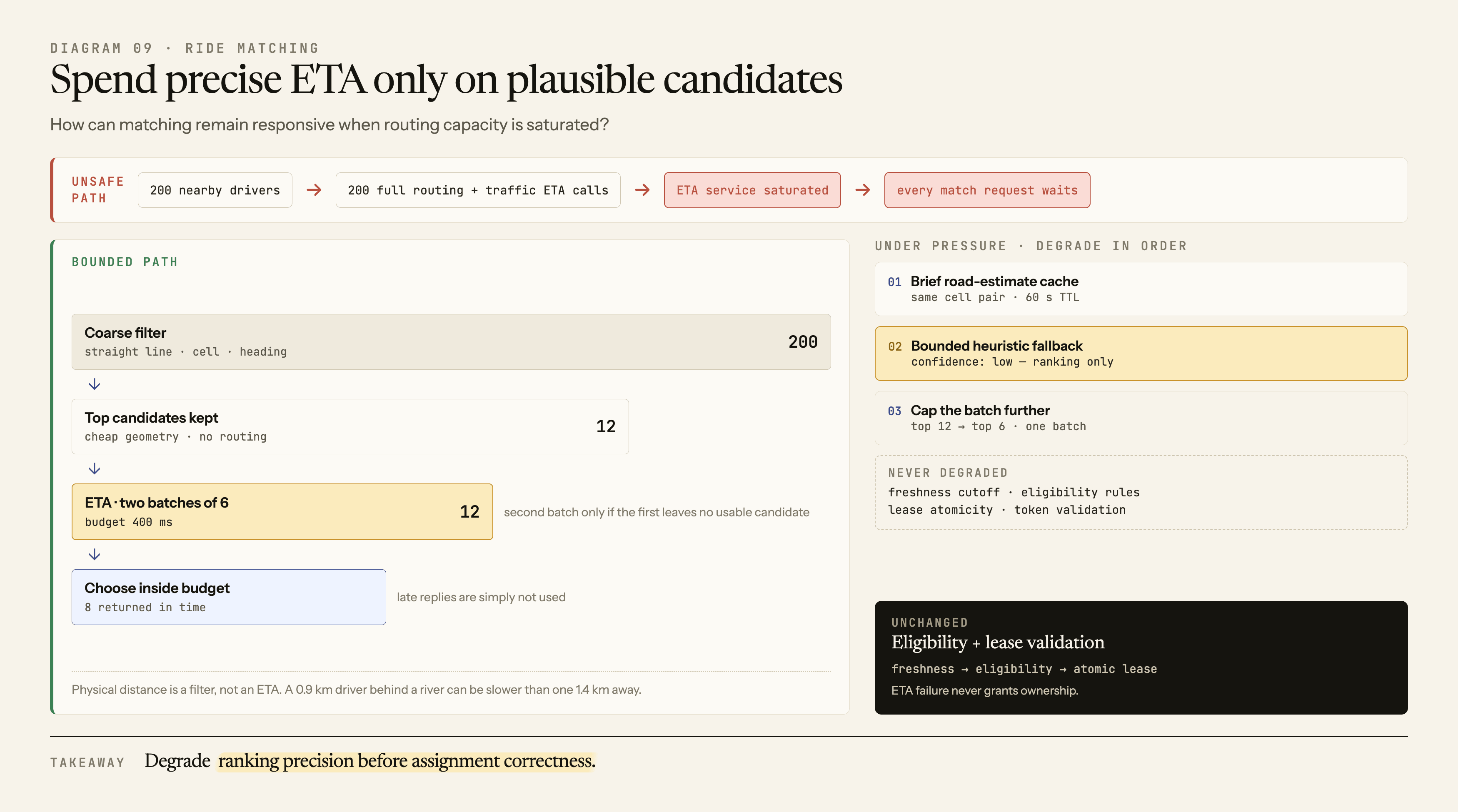

ETA Service Pressure

ETA calls can be expensive. Computing ETA for hundreds of candidates per request can overload routing systems.

Mitigations:

coarse distance filtering before ETA
compute ETA for top candidate batches only
cache road-network estimates briefly
degrade to simpler heuristics under load

9. Distributed Systems Concepts

Stale State

Driver location and availability are both time-sensitive. The matcher must treat them as fresh signals with expiration windows.

This is similar to presence: it is a hint, not permanent truth.

Eventual Consistency

The rider UI, driver UI, ride store, geospatial index, analytics, and notifications may not update at exactly the same time.

The source-of-truth ride state should be clear, while derived views catch up through events.

Idempotency

Rider requests, driver accepts, and assignment confirmations can all retry. Without idempotency, flaky mobile networks can create duplicate rides, duplicate accepts, or confusing state transitions.

Backpressure

During a city-level spike, the platform may need to protect itself by slowing non-critical work, shedding expensive retries, limiting location update frequency, or degrading ETA precision.

10. Reliability & Failure Handling

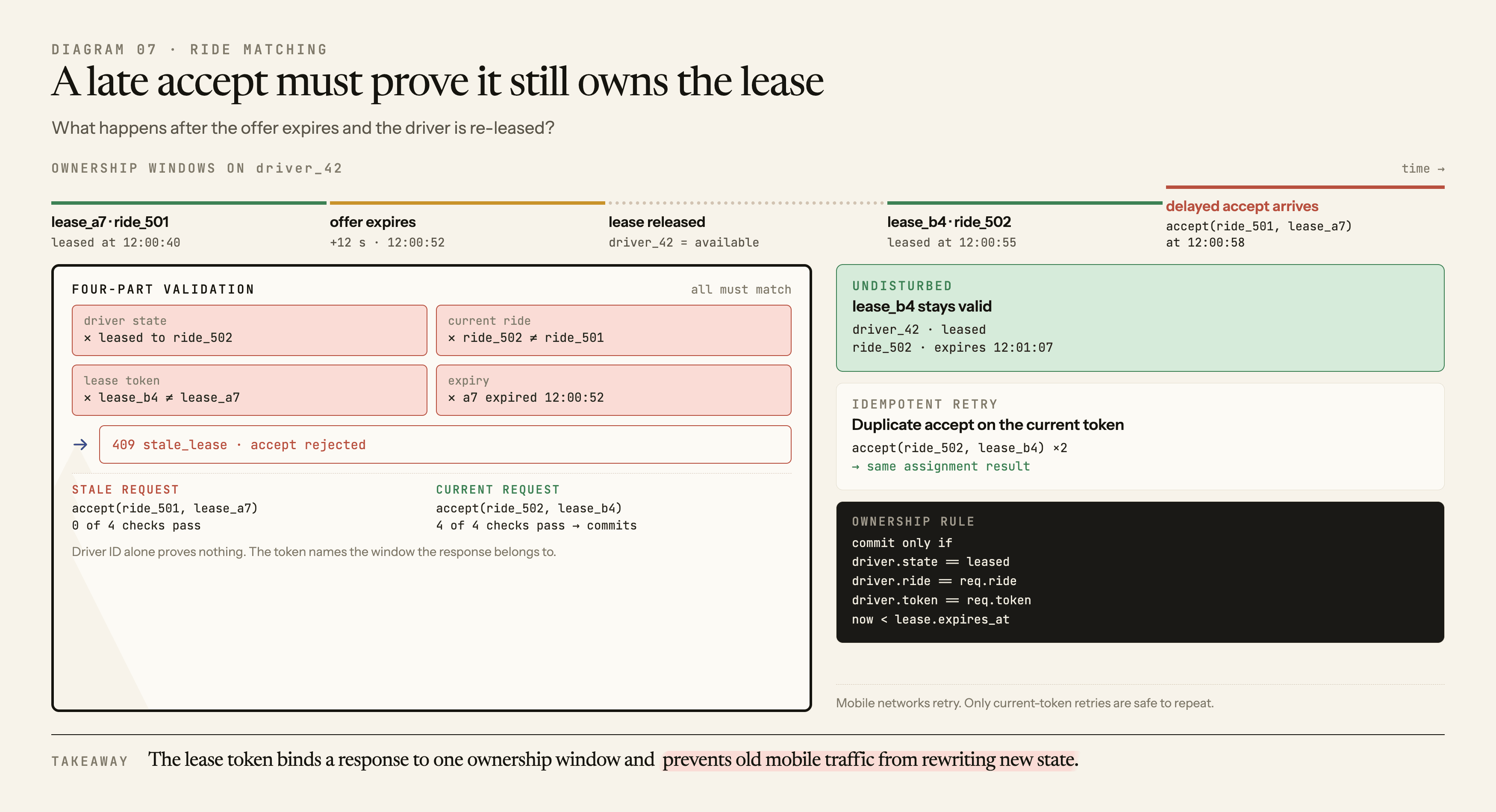

Driver Accepts After Lease Expiry

A driver may accept after the offer expired. The assignment service should check the lease token and current ride state before committing the assignment.

If the lease changed, the late accept should be rejected or converted into a clean product message.

Matcher Crashes After Leasing Driver

If a matcher wins a lease and crashes before sending the offer, the lease expiration releases the driver.

The system may also run a repair job that finds expired leases and returns drivers to available state.

Location Stream Lag

If location processing lags, the geospatial index becomes stale. The matcher should use freshness checks and operators should alert on location lag.

Offer Delivery Failure

The offer service may fail to reach the driver app. The offer should time out, release the lease, and let matching continue.

Ride State Drift

Ride state can drift if events are missed or consumers lag. Durable ride events, replay, and reconciliation jobs help rebuild derived state and detect stuck workflows.

11. Real-World Company Approaches

Large ride-hailing systems generally separate location ingestion, supply indexing, matching, assignment, notifications, pricing, maps, fraud, and trip lifecycle services.

Public system design explanations often compress this into "use geohash and pick nearest driver." That misses the core production problem. The hard part is not drawing cars on a map. The hard part is safely assigning scarce moving supply under uncertainty.

The reusable architecture shape is:

location stream
  -> latest supply view
  -> geospatial index
  -> dispatch matching
  -> assignment lease
  -> offer/accept workflow
  -> durable ride lifecycle events

Ride matching is a distributed assignment problem, not just a distance query.
Location streams are decaying signals, not permanent truth.
Geospatial indexing narrows candidates before exact ranking.
Dispatch matching must handle stale state, ETA, eligibility, and marketplace constraints.
Lease-based assignment prevents double-booking scarce drivers.
Mobile retries make idempotency essential.
Freshness, assignment contention, ETA error, and offer timeout rate should be operational metrics.
Derived views can lag, but source ride state must remain clear and repairable.
